Quick User Guide

 Previous pageReturn to chapter overviewNext page

Login



Simply open your Web Client address (URL) using a web browser, you will see the login page shown below:

login





And then enter your username/password and click "Login" button, if username and password is matched, you will see Web Client's main interface like below.









Main Interface

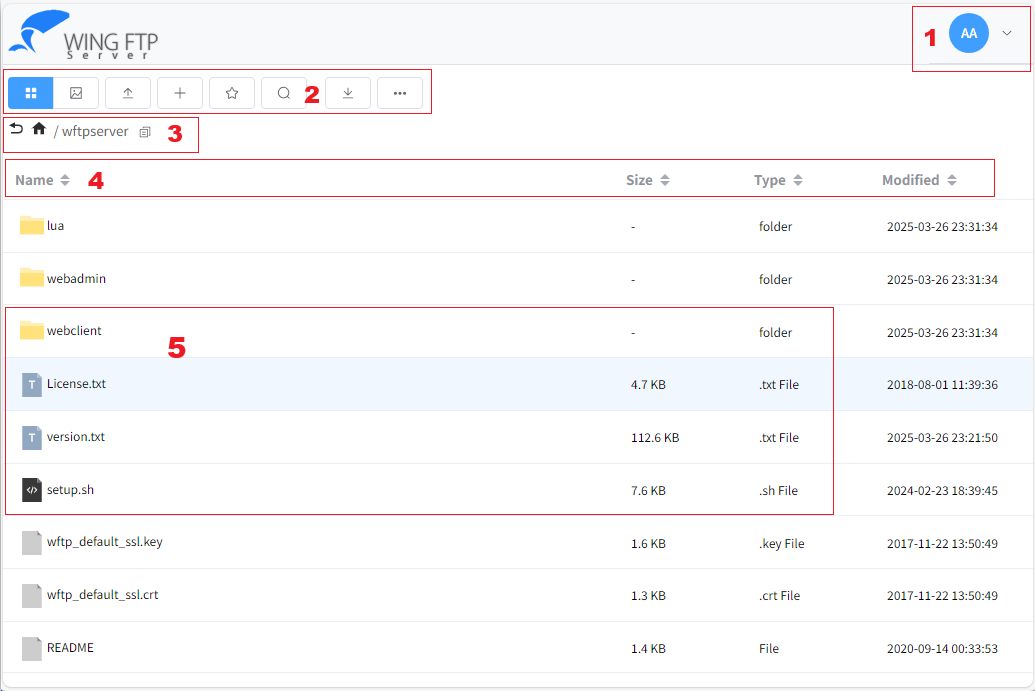

newui





In the above screenshot, we divide the main interface into 5 clickable sections:



•Section 1:

There are a few menu items in this section, "Change Password" is for changing user password, "Help" is for opening the help manual, and you can click "Logout" to log out.





•Section 2:

This section contains several buttons to perform various utility functions:

1.View Mode Switch: Switch the view mode between listing mode and thumbnail mode.
2.Upload File: To upload files simply click this button and then select files or a folder to start uploading.
3.New(+): For creating a new folder or creating a new text file, or add a bookmark for the current path.
4.Bookmark: Bookmark feature allows you to change directory quickly.
5.Search: Enter a file name to search, and you can use the wildcards * in the filename like "*.pdf". But you can't upload or use thumbnail mode after searching, you need to click the button "Search" again to cancel the search.
6.Download: Click this button to download a selected file, you can also double-click on a file to download it.
7.More Actions(...): Other useful operations are contained in the popup menu after clicking this button.





•Section 3:

The button return means "Go up to the parent directory", home means "Go up to the root directory". And current path is also shown in this area, you can click the subfolder name for a quick jump.





•Section 4:

You can sort the file listing by clicking column headers "Name", "Size", "Type" and "Modified".





•Section 5:

All the files/folders are listed in this area, you can select the files by mouse click&drag first (or hold CTRL key and click the filename), then click the operation button on the top or right click to popup the context menu.







Hot keys



Operation

Shortcut

Refresh file listing

F5

Go to the parent directory

Backspace

Go to the root directory

Home

Upload file/folder

Ctrl + U

Download file/folder

Ctrl + D

Delete file/folder

Delete

Cut file/folder

Ctrl + X

Paste

Ctrl + V

Rename file/folder

Ctrl + R

Select multiple files/folders

Ctrl + click the filename
